In order to be marked Breda, each new product must satisfy all safety standards in full and come complete with a range of safety systems. These safety systems, like the quality of the construction of the shutter doors, are very carefully tested and checked to ensure what you have chosen is “the best”.
Sectional Loading Doors, Folding Doors and Dock Levellers are guaranteed to have advanced safety systems and in some case are covered by international Breda patents as well as CE certification against mandatory specifications for products marketed in the European Community. This is a further guarantee of quality construction and company reliability.
|
| Sectional Loading Doors Certification and quality testing |
|
|
|
Reference rules |
UNI EN 13241-1 4.4.1 |
ENI EN 13241-1 4.4.6 |
UNI EN 13241-1 4.4.3 |
| UNI EN 13241-1 4.4.5 |
| EN 12428 |
UNI EN ISO
10077-2:2002 |
| UNI EN ISO 10077-2:2004 |
|
UNI EN 13241-1 4.2.4
e 4.4.7 |
UNI EN 13241-1 4.2.9 |
|
Certification company |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
Self-certification |
|
Test type |
Resistance to water penetration |
Air permeability |
Wind resistance |
Heat-resistant |
Number cycles made before |
Release of dangerous substances |
|
PRODUCT |
Class |
Class |
Class |
Class |
Value |
|
|
Domus Line |
0 |
0 |
2 (= 450 Pa) |
0,58 |
15.000 |
No release |
Pegaso Line |
|
|
2 (= 450 Pa) |
1,01 |
15.000 |
No release |
Wood Line |
|
|
2 (= 450 Pa) |
1,32 |
15.000 |
No release |
|
Steel Line |
|
|
|
|
|
|
Alu Line |
|
|
2 (= 450 Pa) |
* |
15.000 |
No release |
|
“Le Perle” |
|
|
|
|
|
|
|
Orus |
|
|
|
|
|
|
|
Reference rules |
D.M. 26.06.1984
Method of test: CSE RF 3/77 |
Test ISO 140-3 Value ISO 717-1 |
Certification company |
Ministry of the Interior |
University of Padova (ITALY), Facoltà di Ingegneria Dip. di Fisica Tecnica |
Test type |
Reaction to fire |
Acoustic absorption |
PRODUCT |
Class |
Value |
Domus Line |
0-2 |
RW(C;Ctr) = 23 (-2; -3) dB |
Steel Line |
|
RW(C;Ctr) = 23 (-2; -3) dB
|
ΠBreda sectional doors are CE certified to UNI EN 13241-1:2004 standard, which is mandatory for all doors produced and sold in the European Community. This standard covers the service and safety requirements for industrial, residential and garage doors and gates.
Breda has designed and equipped its products with mandatory safety systems to meet the requirements of the UNI EN 13241-1 standard against the risks of shearing, cutting, conveyance and crushing. These systems include: spring break safety device, cable break safety device, track covers, finger protection panel edges and hinges and brackets without protuberances.
All Breda loading doors are marked CE and carry a Conformity Declaration as well as Maintenance and Assembling Instruction Manuals.
Further more, the Breda Company has put in place a quality management system certified to UNI EN ISO 9001:2000 standard and an environmental management system system certified to UNI EN 14001:2004 standard.

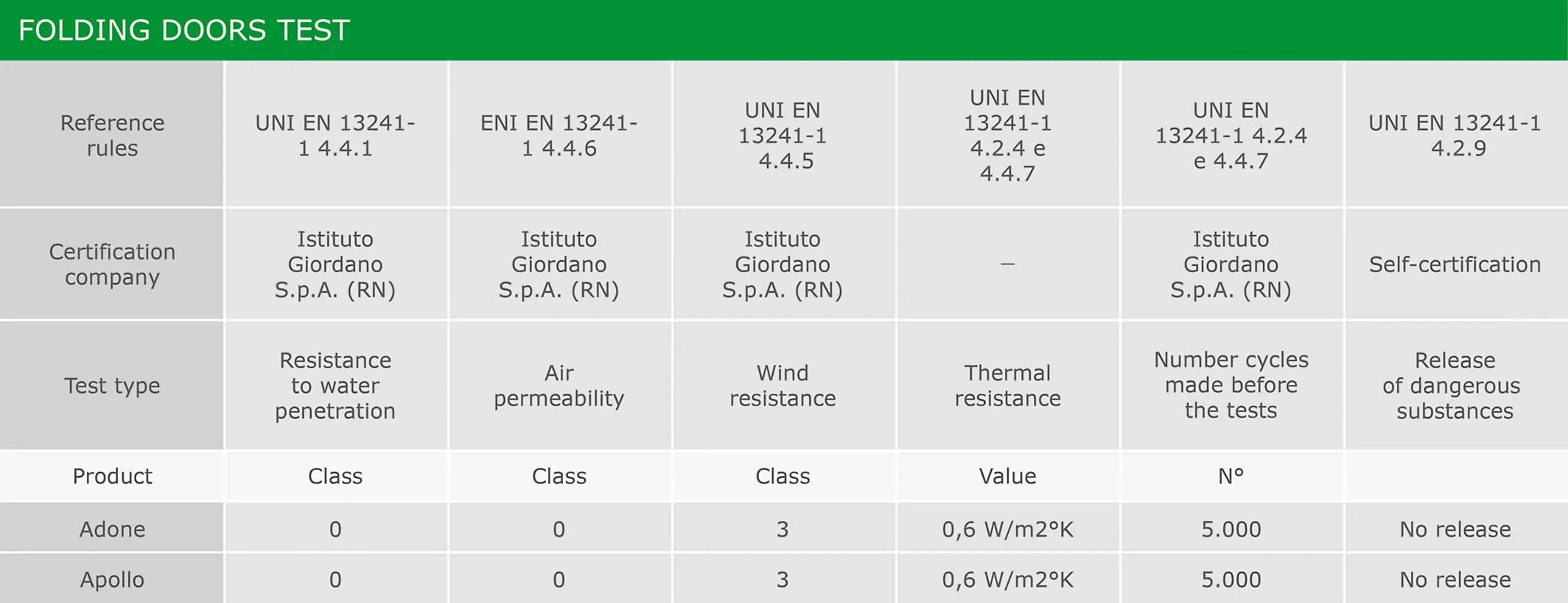

* = Depending on the type of filling |
|
Reference rules |
UNI EN 13241-1
4.4.1 |
ENI EN 13241-1 4.4.6 |
UNI EN 13241-1 4.4.3 |
UNI EN 13241-1 4.4.5 |
UNI EN 13241-1
4.2.4 e 4.4.7 |
UNI EN 13241-1 4.2.9 |
Certification company |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
Istituto Giordano
S.p.A. (RN) |
_ |
Istituto Giordano
S.p.A. (RN) |
Autocertificazione |
Test type |
Resistance to water penetration |
Air permeability |
Wind resistance |
Heat-resistant |
Cycles made before
the tests |
Release of dangerous substances |
PRODUCT |
Class |
Class |
Class |
Value |
N° |
_ |
Adone |
0 |
0 |
3 (= 700 Pa) |
0,6 |
5.000 |
No release |
Apollo |
|
|
3 (= 700 Pa) |
0,6 |
5.000 |
No release |
ΠBreda folding doors are CE certified to UNI EN 13241-1:2004 standard, which is mandatory for all doors produced and sold in the European Community. This standard covers the service and safety requirements for industrial, residential and garage doors and gates.
Breda has designed and equipped its products with mandatory safety systems system certified to UNI EN 13241-1 standard against risks of shearing, cutting, conveyance and crushing. These systems include: spring break safety device, cable break safety device, track covers, finger protection panel outline and hinges and brackets devoid of protuberances. All folding doors carry the CE mark, a Conformity Declaration as well as Maintenance and Assembling Instruction Manuals.The Breda Company has put in place a quality management system system certified to UNI EN ISO 9001:2000 standard and an environmental management system system certified to UNI EN ISO 14001:2004 standard.
ΠSAFETY RULES. The hydraulic dock levellers satisfy the construction and safety features covered by the current standards and regulations: 98/37/CE, EN 292/1 and EN 292/2, EN 1398 and UNI CEI EN 45014. All dock levellers carry the CE mark, a Conformity Declaration as well as Maintenance and Assembling Instruction Manuals. |
|
